產品特性：啞鈴型切刀用于橡膠、塑料、彈性體、皮革、薄膜等材料的拉伸試樣制備。符合ISO標準、ASTM標準、GB標準、JIS標準、DIN標準、EN標準、UL標準等
021-33587030021-33587020021-34631757
電話咨詢

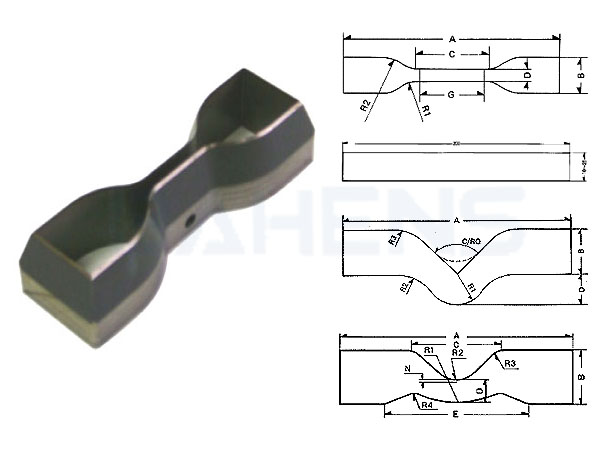

啞鈴型切刀的 規格型號
|
標準 |
型號 |
A |
B |
C |
D |
G |
R1 |
R2 |
|
JIS K-6301 |
1 |
120 |
25 |
40 |
10 ±0.1 |
40 +2/-0 |
21 |
25 |
|
JIS K-6301 |
2 |
100 |
25 |
20 |
10 ±0.1 |
20 +2/-0 |
21 |
25 |
|
JIS K-6301 |
3 |
100 |
25 |
20 |
5 ±0.1 |
20 +2/-0 |
11 |
25 |
|
JIS K-6301 |
4 |
100 |
15 |
20 |
5 ±0.1 |
20 +2/-0 |
40 |
0 |
|
JIS K-6402 |
|
150 |
40 |
50 |
20 |
40 |
25 |
25 |
|
JIS K-6550 |
|
|
|
|
|
|
|
|
|
JIS K-6730 |
|
115 |
25 ±1 |
33 ±2 |
6 +0.4/-0 |
25 ±1 |
14 ±0.5 |
25 ±2 |
|
JIS K-6732 |
|
120 |
25 |
40 |
10 |
40 +2/-0 |
14 |
25±1 |
|
JIS K-6734 |
|
120 |
25 |
40 |
10 |
40 |
21 |
25 |
|
JIS K-6758 |
|
115 |
25 ±1 |
33 ±2 |
6 +0.4/-0 |
25 ±1 |
14 ±0.5 |
25 ±2 |
|
JIS K-6760 |
|
115 |
25 ±1 |
33 ±2 |
6 +0.4/-0 |
25 ±1 |
14 ±0.5 |
25 ±2 |
|
JIS K-6767 |
|
120 |
25 |
40 |
10 ±0.1 |
40 +2/0 |
21 |
25 |
|
JIS K-6771 |
1 |
120 |
25 |
40 |
10 |
40 |
21 |
25 |
|
JIS K-6771 |
3 |
100 |
25 |
20 |
5 |
20 |
11 |
25 |
|
JIS K-6781 |
|
120 |
25 |
40 |
10 |
40 |
14 |
25 |
|
JIS K-6871 |
|
175 |
20 ±0.5 |
60 ±0.5 |
10 ±0.5 |
50 ±0.5 |
60 |
0 |
|
JIS K-7113 |
1 |
175 |
20 ±0.5 |
60 ±0.5 |
10 ±0.5 |
50 ±0.5 |
60 |
0 |
|
JIS K-7113 |
2 |
115 |
25 |
33 ±2 |
6 +0.4/-0 |
25 ±1 |
14 ±1 |
25 ±2 |
|
JIS Z-1702 |
|
120 |
25 |
40 |
10 |
40 |
14 |
25 |
|
|
|
|
|
|
|
|
|
|
|
ASTM D-412 |
A |
140 |
25 ±1 |
59 ±2 |
12 +0.05/-0 |
50 ±0.5 |
14 ±1 |
25 ±2 |
|
ASTM D-412 |
B |
140 |
25±1 |
59 ±2 |
6 +0.05/-0 |
50 ±0.5 |
14 ±1 |
25 ±2 |
|
ASTM D-412 |
C |
115 |
25±1 |
33 ±2 |
6 +0.05/-0 |
25 ±0.25 |
14 ±1 |
25 ±2 |
|
ASTM D-412 |
D |
100 |
16±1 |
33 ±2 |
3 +0.05/-0 |
25 ±0.25 |
14 ±1 |
16 ±2 |
|
ASTM D-412 |
E |
125 |
16±1 |
59 ±2 |
3 +0.05/-0 |
50 ±0.5 |
14 ±1 |
16 ±2 |
|
ASTM D-412 |
F |
125 |
16±1 |
59 ±2 |
6 +0.05/-0 |
50 ±0.5 |
14 ±1 |
16 ±2 |
|
ASTM D-638 |
1 |
165 |
19 +6.4/-0 |
57 ±0.5 |
13 ±0.5 |
50 ±0.25 |
76 ±1 |
0 |
|
ASTM D-638 |
2 |
183 |
19 +6.4/-0 |
57 ±0.5 |
6 ±0.5 |
50 ±0.25 |
76 ±1 |
0 |
|
ASTM D-638 |
3 |
246 |
29 +6.4/-0 |
57 ±0.5 |
19 ±0.5 |
50 ±0.25 |
76 ±1 |
0 |
|
ASTM D-638 |
4 |
115 |
19 +6.4/-0 |
33 ±0.5 |
6 ±0.05 |
25 ±0.13 |
14 ±1 |
25 ±1 |
|
ASTM D-638 |
5 |
63.5 |
9.53 +3.18/-0 |
9.53 ±0.08 |
3.18 ±0.03 |
7.62 ±0.02 |
12.7 ±0.08 |
0 |
|
ASTM D-1708 |
|
38.1 |
15.88±.051 |
22.25±.051 |
1.75±.051 |
22.25±.051 |
3.2±.051 |
|
|
ASTM D-1882 |
L |
63.5 |
9.53 |
9.53±.08 |
3.18 ±0.03 |
0 |
12.7 ±0.08 |
0 0 0 |
|
ASTM D-1882 |
S |
63.5 |
9.53 |
0/12.7R |
3.18 ±0.03 |
0 |
12.7 ±0.08 |
0 |
|
|
|
|
|
|
|
|
|
|
|
DIN 53504 |
S1 |
115 |
25 |
33 |
6 |
25 |
14 |
25 |
|
DIN 53504 |
S2 |
75 |
12.5 |
25 |
4 |
20 |
8 |
20 |
|
DIN 53504 |
S3 |
30 |
6 |
10 |
2 |
10 |
2.2 |
10 |
|
DIN 53504 |
S3A |
50 |
8.5 |
15 |
4 |
10 |
10 |
10 |
|
|
|
|
|
|
|
|
|
|
|
BS 2782 |
3 |
114 |
25 |
33 |
6+.04/-0 |
25 |
14±.5 |
25±1 |
|
BS 6746 |
|
75 |
12.5±1 |
25±1 |
4±.1 |
20±.1 |
8±.5 |
12.5±1 |
|
|
|
|
|
|
|
|
|
|
|
IEC 540 |
50 |
50 - |
8.5 ±1 |
17 ±1 |
4 ±0.1 |
10 ±0.1 |
7.5 ±0.5 |
10 ±1 |
|
IEC 540 |
75 |
75 |
12.5 |
25 |
4±.1 |
20±.1 |
8±.5 |
12.5 |
|
|
|
|
|
|
|
|
|
|
|
UL 746A |
A |
140 - |
25 ±1 |
59 ±2 |
12 +0.05/-0 |
50 |
14 ±1 |
25 ±2 |
|
UL 746A |
B |
140 - |
25 ±1 |
59 ±2 |
6 +0.05/-0 |
50 |
14 ±1 |
25 ±2 |
|
UL 746A |
C |
115 - |
25 ±1 |
33 ±2 |
6 +0.05/-0 |
25 |
14 ±1 |
25 ±2 |
|
UL 746A |
D |
100 - |
16 ±1 |
33 ±2 |
3 +0.05/-0 |
25 |
14 ±1 |
16 ±2 |
|
UL 746A |
E |
125 - |
16 ±1 |
59 ±2 |
3 +0.05/-0 |
50 |
14 ±1 |
16 ±2 |
|
UL 746A |
F |
125 - |
16 ±1 |
59 ±2 |
6 +0.05/-0 |
50.8 |
14 ±1 |
16 ±2 |
|
UL 62. 87. 1 |
A |
152.4 |
25.4 ±1 |
50.8±2 |
6.4 0.05/-0 |
50 |
22.2 ±1 |
25.4 ±2 |
表中切刀型號未包含所有切刀型號，詳情請來電咨詢0510-82400646。
